| Part Number : | EEE-FT1E330AR |
|---|---|
| Manufacturer/Brand : | Panasonic |
| Description : | CAP ALUM 33UF 20% 25V SMD |
| RoHs Status : | Lead free / RoHS Compliant |
| Quantity Available | 437064 pcs |
| Datasheets | 1.EEE-FT1E330AR.pdf2.EEE-FT1E330AR.pdf3.EEE-FT1E330AR.pdf4.EEE-FT1E330AR.pdf5.EEE-FT1E330AR.pdf |
| Voltage - Rated | 25V |
| Tolerance | ±20% |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Series | FT |
| Ripple Current @ Low Frequency | 104mA @ 120Hz |
| Ripple Current @ High Frequency | 160mA @ 100kHz |
| Ratings | AEC-Q200 |
| Polarization | Polar |
| Packaging | Tape & Reel (TR) |
| Package / Case | Radial, Can - SMD |
| Other Names | EEEFT1E330AR PCE5004TR |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 19 Weeks |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.240" (6.10mm) |
| ESR (Equivalent Series Resistance) | 850 mOhm @ 100kHz |

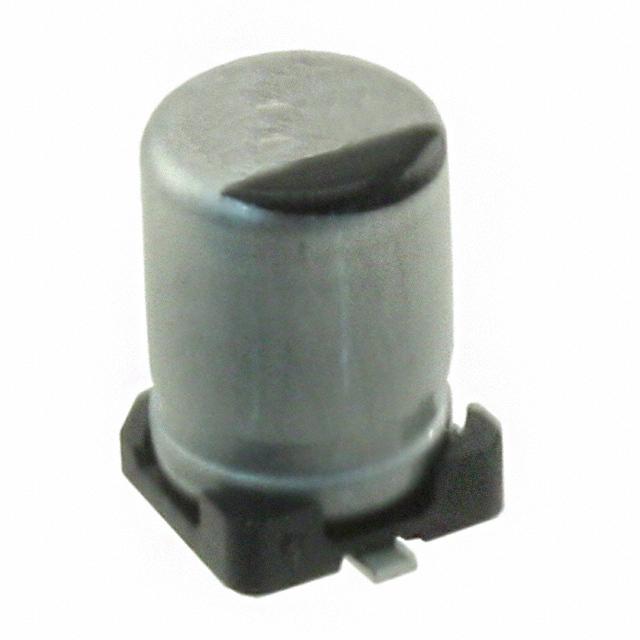

| Detailed Description | 33µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 850 mOhm @ 100kHz 2000 Hrs @ 105°C |
| Capacitance | 33µF |
| Applications | Automotive |
