Part Number : | MCP4726A1T-E/CH |
---|---|
Manufacturer/Brand : | Micrel / Microchip Technology |
Description : | IC DAC 12BIT NV EEP I2C SOT-23-6 |
RoHs Status : | Lead free / RoHS Compliant |
Quantity Available | 46647 pcs |
Datasheets | MCP4726A1T-E/CH.pdf |
Voltage - Supply, Digital | 2.7 V ~ 5.5 V |
Voltage - Supply, Analog | 2.7 V ~ 5.5 V |

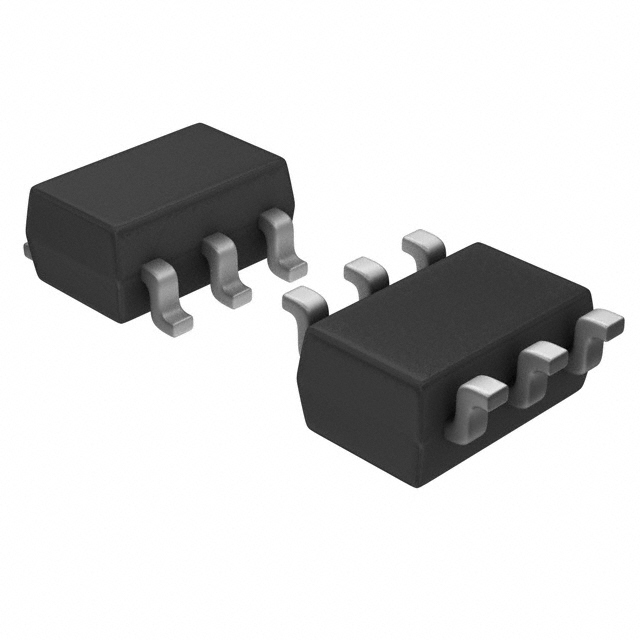

Supplier Device Package | SOT-23-6 |
Settling Time | 6µs (Typ) |
Series | - |
Reference Type | External, Supply |
Packaging | Tape & Reel (TR) |
Package / Case | SOT-23-6 |
Output Type | Voltage - Buffered |
Other Names | MCP4726A1T-E/CH-ND MCP4726A1T-E/CHTR |
Operating Temperature | -40°C ~ 125°C |
Number of D/A Converters | 1 |
Number of Bits | 12 |
Mounting Type | Surface Mount |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Manufacturer Standard Lead Time | 16 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
INL/DNL (LSB) | ±2, ±0.2 |
Differential Output | No |
Detailed Description | 12 Bit Digital to Analog Converter 1 SOT-23-6 |
Data Interface | I²C |
Base Part Number | MCP4726A1 |
Architecture | R-2R |
