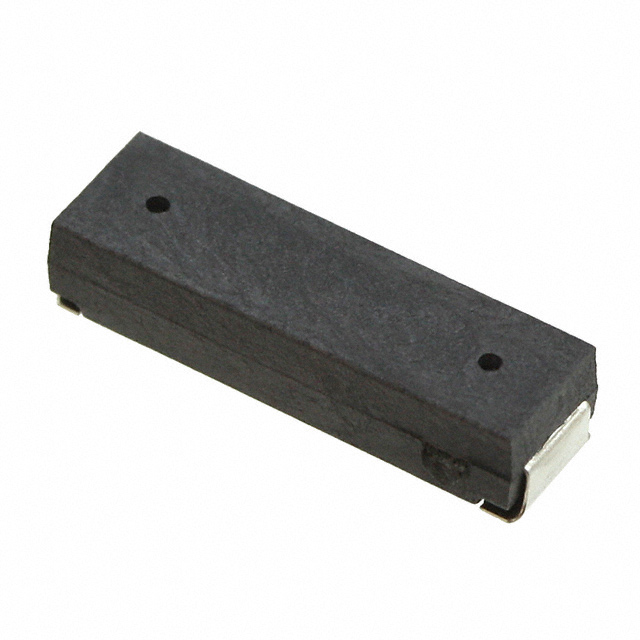

| Part Number : | TPL1183525-242Y-236N |
|---|---|
| Manufacturer/Brand : | TDK Corporation |
| Description : | FIXED IND 2.36MH 24 OHM SMD |
| RoHs Status : | Lead free / RoHS Compliant |
| Quantity Available | 52990 pcs |
| Datasheets | 1.TPL1183525-242Y-236N.pdf2.TPL1183525-242Y-236N.pdf |
| Type | - |
| Tolerance | ±3% |
| Supplier Device Package | - |
| Size / Dimension | 0.465" L x 0.138" W (11.80mm x 3.50mm) |
| Shielding | Unshielded |
| Series | TPL |
| Ratings | AEC-Q200 |
| Q @ Freq | 53 @ 125kHz |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Other Names | 445-6768-2 TPL1183525242Y236N |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | - |
| Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 125kHz |
| Inductance | 2.36mH |
| Height - Seated (Max) | 0.106" (2.70mm) |
| Frequency - Self Resonant | - |
| Detailed Description | 2.36mH Unshielded Inductor 24 Ohm Nonstandard |
| DC Resistance (DCR) | 24 Ohm |
| Current - Saturation | - |
