Part Number : | 929647-01-01-I |
---|---|
Manufacturer/Brand : | 3M |

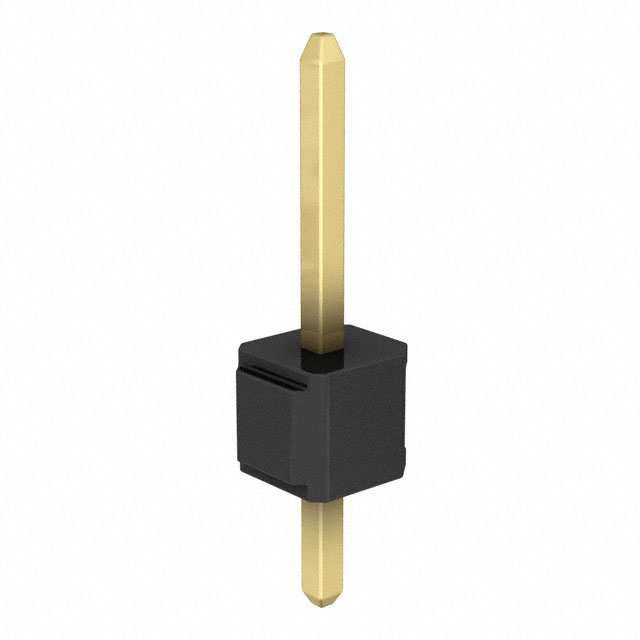

Description : | CONN HEADER 1POS STR .100 GOLD |
RoHs Status : | Lead free / RoHS Compliant |
Quantity Available | 85175 pcs |
Datasheets | 1.929647-01-01-I.pdf2.929647-01-01-I.pdf |
Voltage Rating | - |
Termination | Solder |
Style | Board to Board |
Shrouding | Unshrouded |
Series | 929 |
Row Spacing - Mating | - |
Pitch - Mating | - |
Packaging | Bulk |
Overall Contact Length | 0.445" (11.30mm) |
Other Names | 3M156515-01 5111165239 51111652398 70010000316 929647-01-01 929647-01-01-ND 9296470101I 929647E-01-01 929647E-01-01-ND |
Operating Temperature | -40°C ~ 105°C |
Number of Rows | 1 |
Number of Positions Loaded | All |
Number of Positions | 1 |
Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
Insulation Height | 0.100" (2.54mm) |
Insulation Color | Black |
Ingress Protection | - |
Features | - |
Fastening Type | Push-Pull |
Detailed Description | Connector Header Through Hole 1 position |
Current Rating | 2.5A |
Contact Type | Male Pin |
Contact Shape | Square |
Contact Material | Copper Alloy |
Contact Length - Post | 0.110" (2.79mm) |
Contact Length - Mating | 0.235" (5.97mm) |
Contact Finish Thickness - Post | 10.0µin (0.25µm) |
Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
Contact Finish - Post | Gold |
Contact Finish - Mating | Gold |
Connector Type | Header, Breakaway |
Applications | - |
