| Part Number : | 929647-01-05-I |
|---|---|
| Manufacturer/Brand : | 3M |

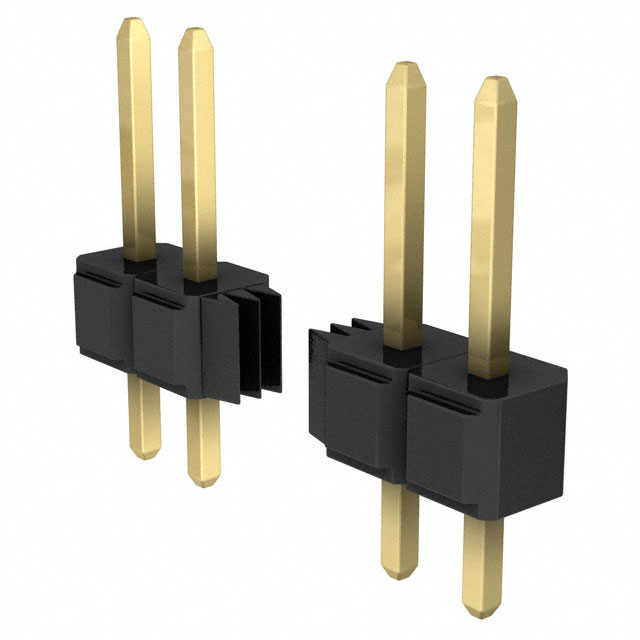

| Description : | CONN HEADER 5POS STR .100 GOLD |
| RoHs Status : | Lead free / RoHS Compliant |
| Quantity Available | 51216 pcs |
| Datasheets | 1.929647-01-05-I.pdf2.929647-01-05-I.pdf |
| Voltage - DC Spark Over (Nom) | Copper Alloy |
| Type Attributes | - |
| Termination | Solder |
| Style | Board to Board |
| Stacking Direction | Male Pin |
| Shrouding | 0.100" (2.54mm) |
| Shield Termination | Square |
| Series | 929 |
| Row Spacing - Mating | Unshrouded |
| RoHS Status | Bulk |
| Ripple Current - Low Frequency | - |
| Pitch - Connector | - |
| Overall Contact Length | 0.110" (2.79mm) |
| Other Names | 5113882618 51138826185 80610488365 929647-01-05 929647-01-05-ND 9296470105I 929647E-01-05 |
| Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 |
| Number of Positions | 5 |
| Number of Contacts | 10µin (0.25µm) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All |
| Manufacturer Part Number | 929647-01-05-I |
| Length - Post (Mating) | - |
| Insulation Material | Gold |
| Insulation Height | 0.445" (11.30mm) |
| Features | - |
| Expanded Description | 5 Positions Header, Breakaway Connector 0.100" (2.54mm) Through Hole Gold |
| Description | CONN HEADER 5POS STR .100 GOLD |
| Current Rating | 2.5A |
| Current - Max/Contact | - |
| Contact Length - Post | 0.235" (5.97mm) |
| Contact Length - Mating | - |
| Contact Finish Thickness - Post | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Contact Finish Thickness - Mating | Gold |
| Contact Finish - Post | 10µin (0.25µm) |
| Contact Finish - Mating | 0.100" (2.54mm) |
| Connector Type | Header, Breakaway |
| Actual Diameter | Black |
